Mastering Pivot and Unpivot in Excel: A Step-by-Step Guide

Introduction

You're not alone if you've ever been lost in a sea of data. Though data management might be overwhelming, Excel's Pivot and Unpivot functions are strong tools that can make your life easier. With the help of these tools, you may effectively summarize, evaluate, and restructure data. Learning Excel is essential at OptionTrain College of Management & Technology, whether you're generating reports for class or doing business data analysis in a professional setting.

This blog will go deeply into Excel's Pivot and Unpivot functions, explaining them in detail and offering practical examples to help you see how helpful they are. Together, we can make your Excel abilities great!

What is Pivot and Unpivot in Excel?

To start, let's define these terms:

a. Pivot: An Excel function that turns raw data into insightful information by rapidly summarizing big datasets. Consider it a way to group together and summarizing data while retaining its core components.

b. Unpivot: Reverse pivoting is known as unpivoting. It restores summarized data to either its original form or a form that is easier to analyze in its granular details.

After learning the fundamental concepts, let's look at some practical examples to see how these Excel features are used.

Why Pivot and Unpivot Matter

When working with vast datasets, Pivot and Unpivot are both invaluable—especially for professionals in the fields of technology, finance, and management as well as students. Unpivoting helps in restructuring summarized information for more in-depth research, whereas pivoting enables you to swiftly find trends and relationships in your data.

Knowing how to pivot and unpivot data helps speed up and improve the clarity of your work, whether you're developing financial models or getting ready for a business project at OptionTrain college.

"From Pivot to Unpivot – Excel Skills That Drive Success! Enroll at OptionTrain College Now!"

How to Create a Pivot Table in Excel

Step 1: Setting Up Your Data

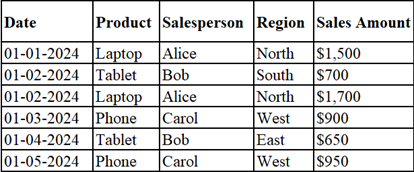

Let's take an example using a common dataset. Assume you have the following information and are working in the sales department:

Step 2: Inserting a Pivot Table

a. Select Your Data: Highlight the entire dataset (including the column headers).

b. Go to the Insert Tab: Click on the Insert tab, then click PivotTable.

c. Choose Location: A window will pop up asking where you want the PivotTable report to be placed—either a new worksheet or the existing one. Select your preference and click OK.

Step 3: Setting Up Pivot Table Fields

Now you will see a blank Pivot Table grid, and a PivotTable Fields panel on the right.

a. Drag Product into the Rows area.

b. Drag Region into the Columns area.

c. Drag Sales Amount into the Values area.

This setup will display the total sales amount for each product across different regions. You will see a neat summary that would otherwise take hours to compile manually.

Step 4: Refining Your Pivot Table

You can further refine this table by adding Filters. For instance, if you want to filter sales data by Salesperson, drag the Salesperson field into the Filters area. Now, you can filter the data by each salesperson to quickly see who sold the most in different regions.

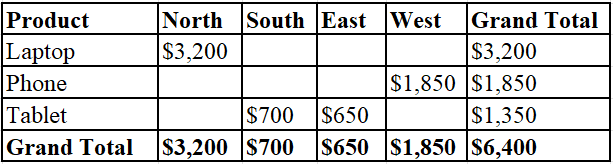

Example of a Completed Pivot Table

Here's what the resulting Pivot Table might look like based on our example data:

In just a few clicks, you've created a summary of total sales by product and region!

"Master Excel, Master Your Future! Enroll in Our Certification Programs at OptionTrain College!"

How to Use Unpivot in Excel

Now let’s flip the coin—what if you receive summarized data and need to revert it to its original form for deeper analysis? This is where Unpivot comes into play.

Step 1: Preparing Your Data

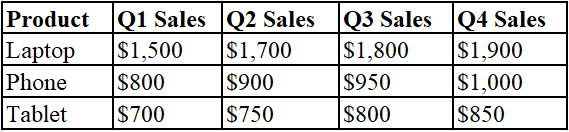

Assume you’re working with this pivoted dataset:

Each column represents sales per quarter, but what if you need to analyze this data on a per-quarter basis? You need to unpivot the data.

Step 2: Unpivoting in Power Query

a. Select Your Data: Highlight the entire dataset, including headers.

b. Go to the Data Tab: Click on the Data tab and choose Get & Transform Data, then select From Table/Range. This will open Power Query Editor.

c. Select Columns to Unpivot: Highlight the quarter columns (Q1 Sales, Q2 Sales, etc.).

d. Right-click and Choose Unpivot Columns: This will return your summarized data to its more granular, row-based form.

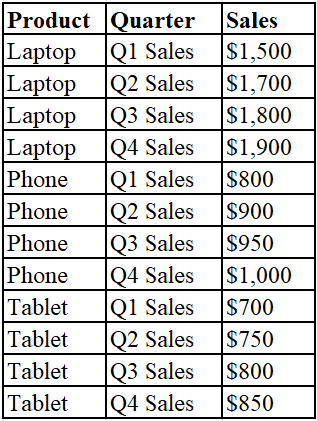

Example Result After Unpivoting

Your data now looks like this:

Now you have each product's sales data broken down by quarter, making it easier to run detailed analyses.

Key Differences Between Pivot and Unpivot

a. Pivot works great for summarizing big datasets into readable tables or reports.

b. Unpivot is ideal for restoring summarized or grouped data to its original, detailed form for further analysis.

Practical Uses for Pivot and Unpivot in Business

Students at OptionTrain College can benefit from these Excel features in several ways, including:

a. Financial Analysis: Quickly summarize sales, profits, or expenses across regions, months, or departments.

b. Marketing Reports: Analyze customer behavior by segmenting them by demographic and purchase patterns.

c. Project Management: Track task completion rates and project timelines by team member or department.

Tips for Using Pivot and Unpivot Like a Pro

a. Data Cleaning: Make sure that your dataset is clean and structured before creating PivotTables or using Power Query for Unpivoting.

b. Use Slicers: Slicers work as an excellent way to add interactivity to your Pivot Tables. They allow you to filter data quickly without modifying the PivotTable structure.

c. Refresh Data Regularly: If you are working with dynamic datasets, refresh your PivotTable regularly to keep the data up-to-date.

d. Experiment with Calculated Fields: For more advanced analysis, PivotTables allow you to create custom calculated fields.
